Product
B2328-42
Device:Terminal
Vendor: Huawei Technologies Co.,Ltd.
Overview
World’s 1st 3.5GHz CA-Capable TDD Outdoor CPE 1.LTE Cat6 2.DL 220Mbps,UL 10Mbps when TDD subframe configuration 2 and special subframe configuration 7 are used 3.DL 2CC CA 4.3.5GHz Global
Parameter
| Form | Outdoor Unit + Indoor Unit |
| Chip platform | HiSilicon Balong720 |
| Category | LTE Cat6 |
| Peak Rate | DL 220Mbps, UL 10Mbps |
| Protocol Version | 3GPP Release 10 |
| Operating Frequency | LTE TDD: Band 42/43 |
| Carrier Aggregation | TDD DL 2CC CA |
| Modulation | DL 64QAM, 16QAM, QPSK UL 16QAM, QPSK |
| Channel Bandwidth | 5 MHz, 10 MHz, 15 MHz, 20 MHz |
| TX Power | 23 dBm ± 2 dB |
| Antenna | LTE antenna: 1T2R 16dBi built-in Antenna |
| MIMO | DL 2x2 MIMO |
| LTE Transmission Mode | LTE TDD: TM2, 3, 4, 7, 8, 9 |
| OS | Windows 2000 SP4 / Vista/ WIN 7 / WIN 8 / WIN 10 Mac OS X 10.4 and 10.5 with latest upgrades |
| Interface | One Voice, Two Data, WiFi AP |
| IP Networking | L2/L3 VPN, IPv4&v6, Dual APN |
| Voice | VoIP:G.729, G.711a-law, G.711u-law Code Fax: G.711 and T.38 |
| Terminal Management | TR069, SNMPv3, FOTA |
| Wi-Fi | 802.11ac/b/g/n, 2.4 GHz & 5GHz Wi-Fi |
| Wi-Fi Encryption | 64/128-bit WEP, WPA, WPA2 |
| Protection Class | IP65 for the outdoor unit IP2X for the indoor unit |

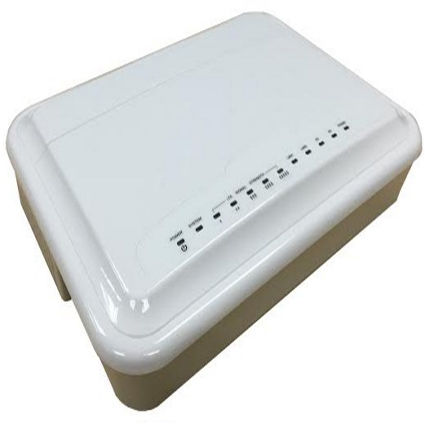

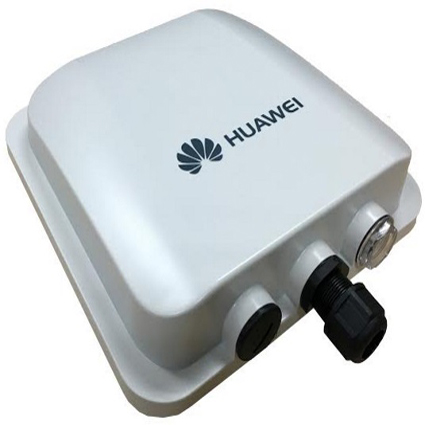

| Dimensions | Outdoor unit: 255 mm * 251.5 mm * 56.99 mm Indoor unit: 173.01 mm * 128.01 mm * 36 mm |
| Weight | Outdoor unit: 1121g Indoor unit: 286g |
| Available Time | Already Available |
