Product

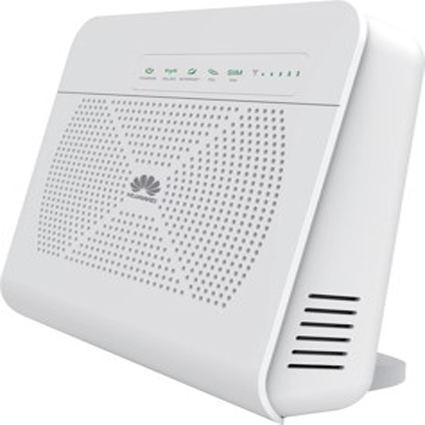

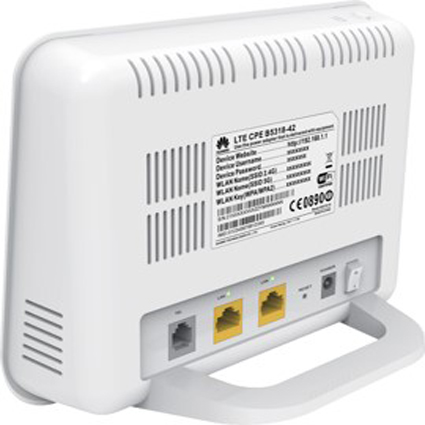

B5318-42
Device:Terminal
Vendor: Huawei Technologies Co.,Ltd.
Overview
World’s 1st 3.5GHz CA-Capable TDD Indoor CPE 1.LTE Cat6 2.DL 220Mbps,UL 10Mbps when TDD subframe configuration 2 and special subframe configuration 7 are used 3.DL 2CC CA 4.3.5GHz Global
Parameter
| Form | Indoor Unit |
| Chip platform | HiSilicon Balong720 |
| Category | LTE Cat6 |
| Peak Rate | DL 220Mbps, UL 10Mbps |
| Protocol Version | 3GPP Release 10 |
| Operating Frequency | LTE TDD: Band 42/43 |
| Carrier Aggregation | TDD DL 2CC CA |
| Modulation | DL 64QAM, 16QAM, QPSK UL 16QAM, QPSK |
| Channel Bandwidth | 5 MHz, 10 MHz, 15 MHz, 20 MHz |
| TX Power | 23 dBm ± 2 dB |
| Antenna | LTE antenna: 1T2R 8dBi built-in directional antenna, no external antenna support |
| MIMO | DL 2x2 MIMO |
| LTE Transmission Mode | LTE TDD: TM2, 3, 4, 7, 8, 9 |
| OS | Windows 2000 SP4 / XP above SP3 / Vista/ Win7/ Win8/ Win10 Mac OS X 10.4 and 10.5 with latest upgrades |
| Interface | Two LAN Data(1 FE,1GE), Wi-Fi AP, Two Voice |
| IP Networking | L2/L3 VPN, IPv4&v6, Dual APN |
| Voice | VoIP:G.729, G.711a-law, G.711u-law Code Fax: G.711 and T.38 |
| Terminal Management | TR069, SNMP, FOTA |
| Wi-Fi | 802.11ac/b/g/n, 2.4 GHz and 5 GHz Wi-Fi |
| Wi-Fi Encryption | 64-/128-bit WEP, WPA, WPA2 |
| Protection Class | IP2X |
| Dimensions | 192mm * 151.5mm * 96.4mm |
| Weight | 300g |
| Available Time | Already Available |
